Using Cordova with Apache NetBeans

This brief guide shows how to make a few tweaks to fix some issues with Apache Cordova 10 and 11 projects in the NetBeans IDE. Fix incompatible Cordova projects and plugin errors in NetBeans.

Apache NetBeans IDE logo

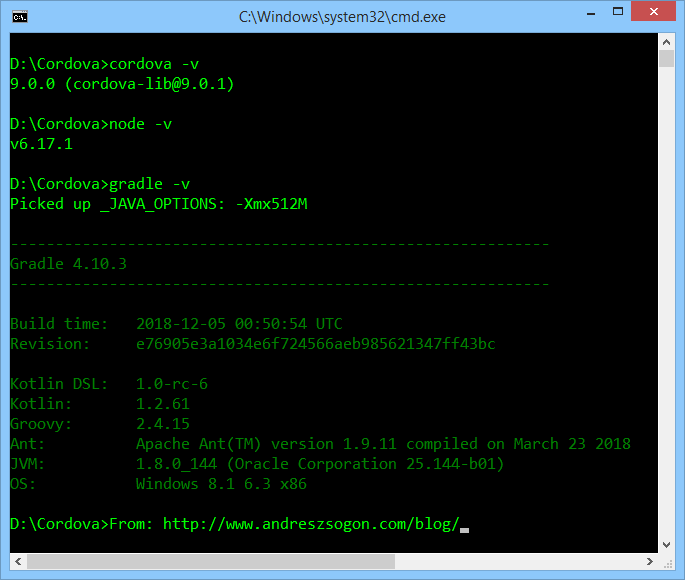

Setup Cordova, NodeJS and Gradle

First, you must have installed Cordova, Node and Gradle. This guide does not focus on how to install those components, these are relatively simple tasks.

Create missing hooks folder

Starting Cordova 10, building cordova apps in NetBeans will throw these errors:

  • Cordova Resources not created
  • No build tools (e.g. Grunt) used in this project
  • Cordova version 3 or greater required when trying to create Cordova resources.
Cordova 10 CLI error creating Cordova resources

Cordova 10 CLI error creating Cordova resources

Solution

  • Create the missing hooks folder under your main project folder.

Fix Build, Clean+Build buttons

The same Cordova version 3 or greater required error interferes with the CLI 10 build process.

Solution

  • Open the nbproject/build.xml
  • In the <target name=”check-cordova-version”> section, delete these lines:
<checkVersion first="${cordova.version}" property="cordova.ver.3"/>
<fail message="Cordova version 3 or greater required." unless="cordova.ver.3"/>

Manage plugins with command line

The following dialog was designed to add standard plugins for your Cordova app from NetBeans, but you must not use it for the reason outlined below.

Using this dialog to add plugins will cause your build to fail!
Do not use the NetBeans Cordova Plugins manager

Avoid using the NetBeans Cordova Plugins manager

Adding those default plugins will insert them to the plugin.properties file with an invalid source URL, therefore your build will fail. Sample URL used for device plugin:

cordova-plugin-device=https://git-wip-us.apache.org/repos/asf/cordova-plugin-device.git

Solution

Disable NetBeans’ plugin.properties file to install Cordova plugins manually.

On build time, plugins added via command line will be removed if not found in the plugin.properties file. Read on to learn how to prevent this!

To switch to command line-only plugin management, follow these steps:

  • Open the nbproject/build.xml and replace this:
<target name="update-plugins">
    <plugintask/>
</target>
  • With this:
<target name="update-plugins">
    <echo level="info" message="Ignoring the update-plugins section, please manage plugins from the command line" />
</target>

Save the file, and now whenever you build your app from NetBeans, it will neither install nor delete plugins. From now on, manage plugins with the cordova plugin add … and cordova plugin rm … command.

Cordova plugins from NetBeans npm section

Cordova plugins from NetBeans npm section

You can still see that installed plugins from the npm Libraries item, and view their versions by accessing the npm Libraries Properties dialog.

Fix the Clean and Build Project buttons

NetBeans IDE Toolbar

NetBeans IDE Toolbar

Whenever you try to build or clean your initial Apache Cordova app in NetBeans, you may receive the following error:

build.xml:285: Execute failed:
java.io.IOException: Cannot run program “.\gradlew” (in directory …): CreateProcess error=2, The system cannot find the file specified

Solution

Open the nbproject/build.xml file and replace:

<target name="clean-android" depends="check-android-template" if="android.generated.exists">
    <exec executable="./gradlew" dir="platforms/android">
        <arg value="clean" />
    </exec>
</target>

with:

<target name="clean-android" depends="check-android-template" if="android.generated.exists">
    <exec executable="gradlew.bat" dir="platforms/android" resolveexecutable="true">
        <arg value="clean" />
    </exec>
</target>

Save and close this file.

Now you can use the Clean and Build Project and Clean Project toolbar buttons normally, and the project will be cleaned just like when you type cordova clean in the command line.

NetBeans Cordova Clean command output

NetBeans Cordova Clean command output

Please remember that this Build button generates a debug (unsigned) APK. To create a signed APK, use the build command from the command line like this:

cordova build android --release

Duplicated config.xml file in www folder

Starting Cordova CLI 10, a new config.xml file will be created by NetBeans in the www folder everytime the app is built. This file is totally irrelevant and not used by Cordova, so you can safely ignore or delete it.

Set target Android SDK to 29

Open config.xml and add these lines or edit accordingly:

<preference name="android-minSdkVersion" value="19" />
<preference name="android-targetSdkVersion" value="29" />

By setting minSdkVersion to 19 it means your app requires at least Android 4.4. Check the Android Codenames, Tags, and Build Numbers table for more information.

Android build numbers and codenames

Android build numbers and codenames

Open platforms/android/build.gradle and make sure your repositories and build tools versions and targets are set as follows:

buildscript {
    repositories {
        google()
        jcenter()
        mavenCentral()
    }
    dependencies {
        // NOTE: Do not place your application dependencies here; they belong
        // in the individual module build.gradle files
        classpath 'com.android.tools.build:gradle:3.4.3'
    }
}
allprojects {
    repositories {
        google()
        jcenter()
        mavenCentral()
    }
    //This replaces project.properties w.r.t. build settings
    project.ext {
      defaultBuildToolsVersion="29.0.3" //String
      defaultMinSdkVersion=19 //Integer - Minimum requirement is Android 4.4
      defaultTargetSdkVersion=29 //Integer - We ALWAYS target the latest by default
      defaultCompileSdkVersion=29 //Integer - We ALWAYS compile with the latest by default
    }
}
task clean(type: Delete) {
    delete rootProject.buildDir
}

How to debug your Cordova Android app
